Modern Harness Continuity Testing — Made Accessible
A compact, powerful continuity tester designed for modern wire harness testing — from one-off troubleshooting to large-scale production.
Wire Harness Testing Shouldn't Be This Hard
Large-scale wire harness testing tools are often:
Expensive
Locked behind proprietary adapters and vendor ecosystems
Mismatched
Overkill for small shops, yet limiting for manufacturers
Disconnected
Separated from documentation and traceability workflows
PinPilot was built to bridge that gap — professional-grade testing without professional-sized barriers.
Meet PinPilot

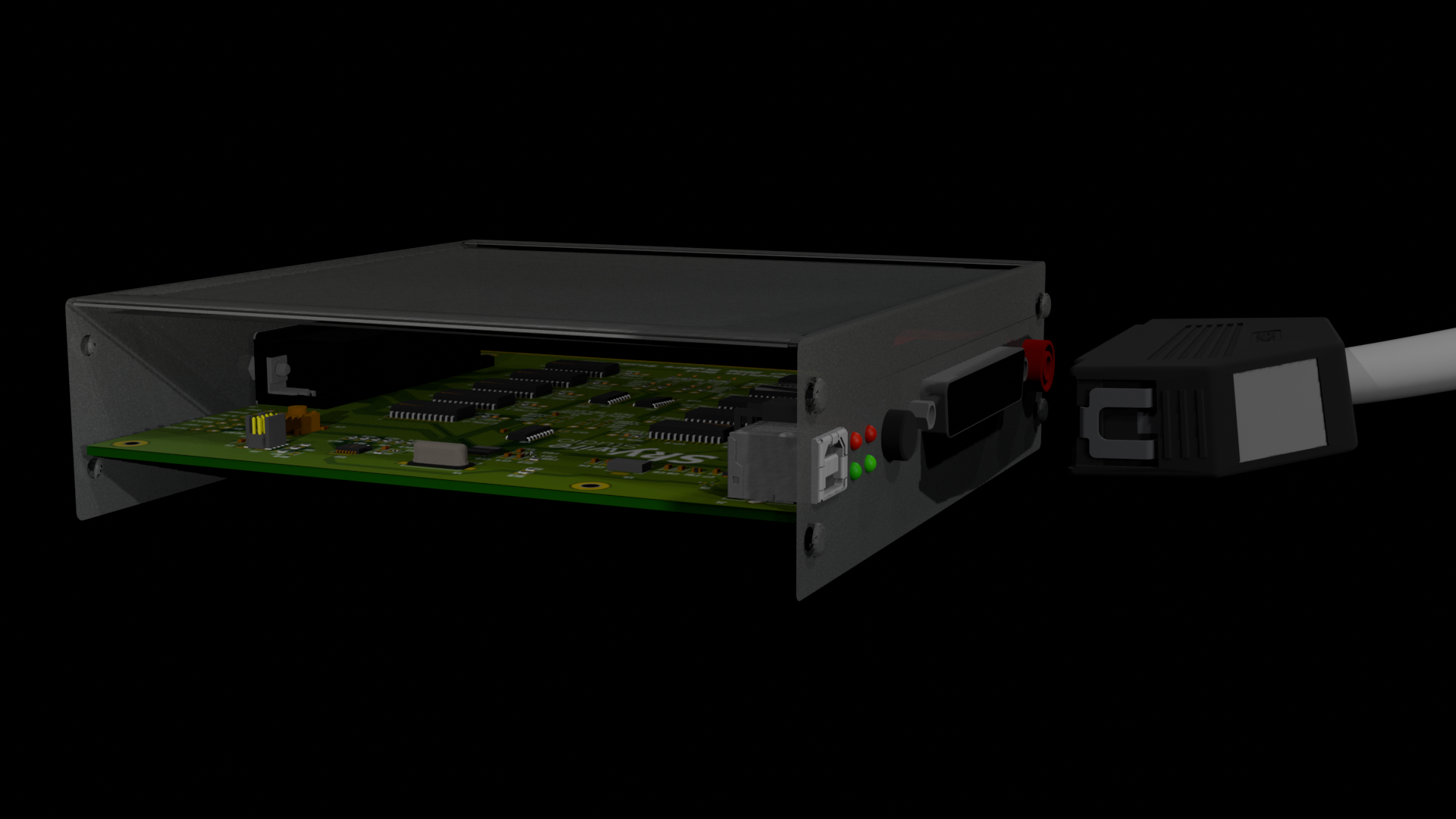

PinPilot is a modern, compact continuity tester designed to make large-scale wire harness testing accessible to shops and manufacturers of any size.
Using readily available 78-pin high-density connectors, PinPilot enables fast, repeatable testing without proprietary hardware or vendor lock-in.
See It In Action
Watch how PinPilot streamlines wire harness testing with its intuitive hardware and powerful software.
Testing Without the Complexity
78-Pin Simultaneous Testing
Test up to 78 pins at once using adapter harnesses assembled from readily available high-density connectors.
No proprietary cables. No expensive adapters. Just smart design.
Manual Probe Mode
For traditional point-to-point troubleshooting, PinPilot functions like a standard multimeter:
- Attach any standard banana plug probe
- Ring out any of the 78 available pins
- Ideal for diagnostics, rework, and quick checks
Powerful Desktop Software Included
PinPilot is paired with a modern desktop application for Windows and macOS, delivering a clean, intuitive workflow for defining, testing, and documenting cable assemblies.
This isn't an afterthought — it's the core of the experience.
Probe Mode — Familiar When You Need It
Use PinPilot just like a traditional multimeter:
- Connect a standard banana-plug probe
- Select any of the 78 pins
- Quickly ring out circuits for diagnostics or verification
Perfect for troubleshooting, field work, and bench testing.
Connector Intelligence Built In
Define your own connectors — or go faster with SkyWire Studio Pro.
With SkyWire Studio Pro:
- • Nearly 300 pre-defined connectors
- • Garmin, Avidyne, Dynon, and more
- • No re-drawing. No guessing pinouts.

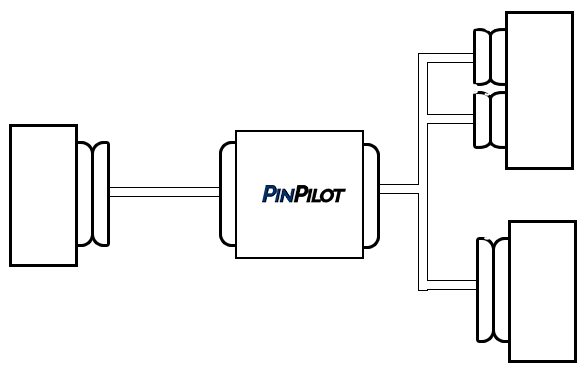

Adapter Harnesses — Visual, Flexible, Repeatable
Adapter harnesses are created using a graphical editor that maps:
- The 78-pin PinPilot connector
- To any number of interface connectors required for the cable under test
Create adapters once. Reuse them forever.
Cables as Schematics — Not Spreadsheets
Visualize cables as full schematics inside the Cables module. Users can:
- Automatically learn cables from PinPilot using predefined adapters
- Manually create schematics with an intuitive graphical editor
- Import CSV netlists to automate cable definition
From definition to documentation — all in one place.
SkyWire Studio Integration
Powered by the SkyWire Studio Ecosystem
PinPilot is designed to integrate seamlessly with the same cloud-backed database that powers SkyWire Studio — trusted by professionals across aviation and advanced electrical design.
From connector intelligence to repeatable documentation, PinPilot benefits from a platform built for scale.
Early Access — Reserve Yours Today
Reserve your PinPilot today with a $50 Early Access deposit.
What You Get
Priority Access
First in line for production units
Launch Pricing
Locked-in at $549 (MSRP $899)
Deposit Applied
Goes toward your final purchase
$50
deposit
$549
final price
$899
MSRP
Deposit is non-refundable except if we are unable to deliver your unit.
Built for Shops, Manufacturers, and Builders
Avionics Shops
Harness Manufacturers
Experimental Builders
Repair Facilities
Engineering Teams
Continuity Testing, Reimagined
PinPilot brings modern hardware, intelligent software, and cloud-powered data together — making professional wire harness testing faster, clearer, and more accessible than ever.
